规格书下载 Specification download:

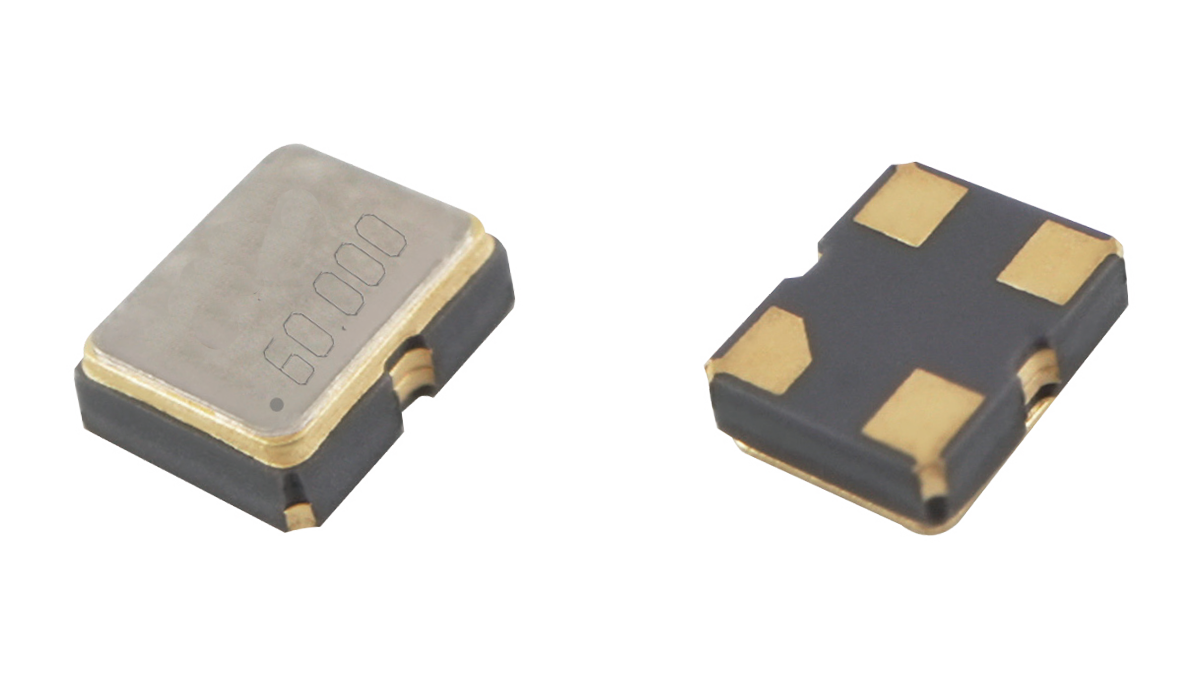

产品类型 PRODUCT TYPE :OSC SMD2016
特征 FEATURES
AT切割 AT Cut
3.3V、2.5V、1.8V电源电压 3 .3V,2 .5V,1 .8V Supply voltag
CMOS/TTL输出 3 .3V,2 .5V,1 .8V Supply voltag
精密公差/稳定性 Tight tolerance/stability
三态功能可用 Tri-state function available

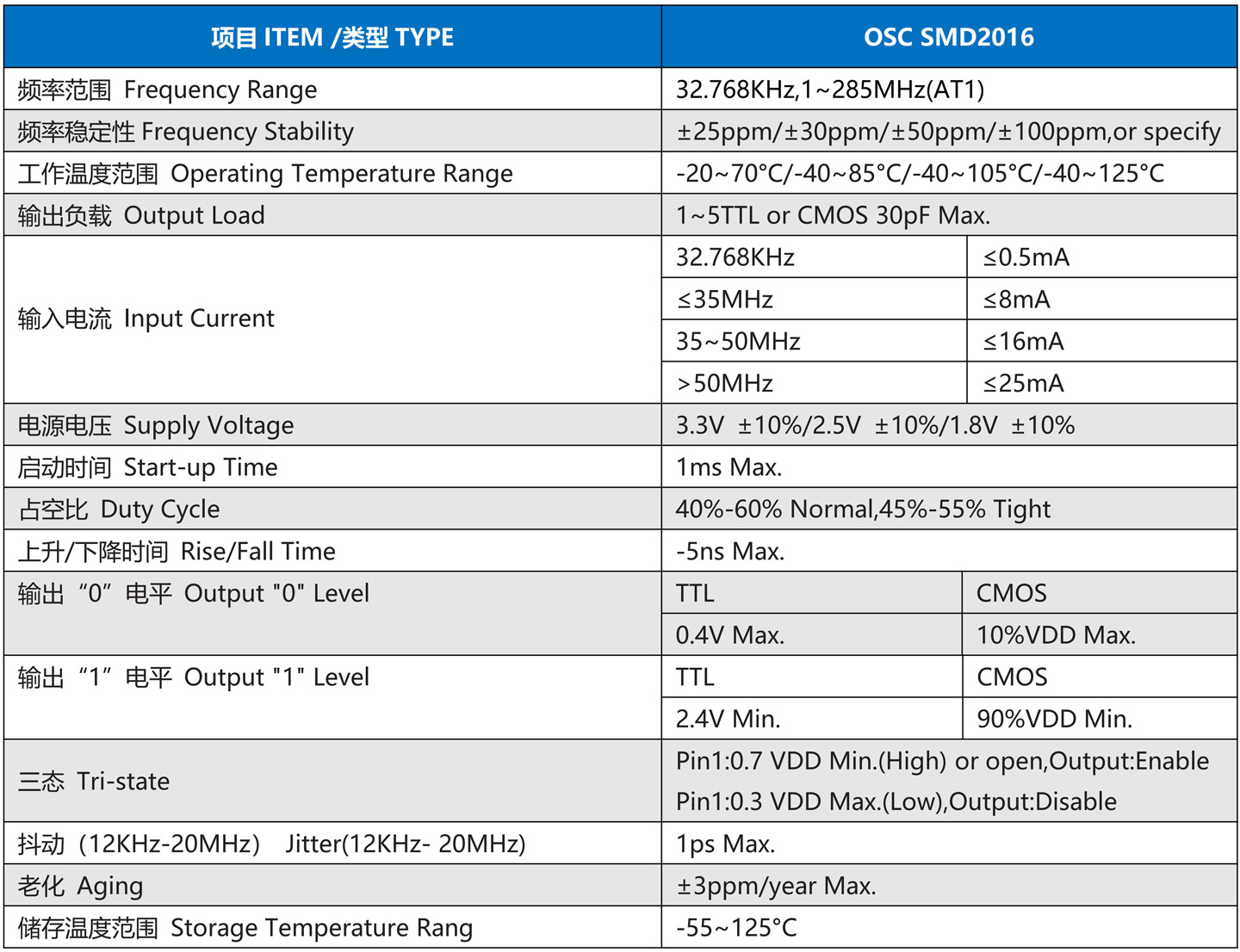

典型规格TYPICAL SPECIFICATIONS

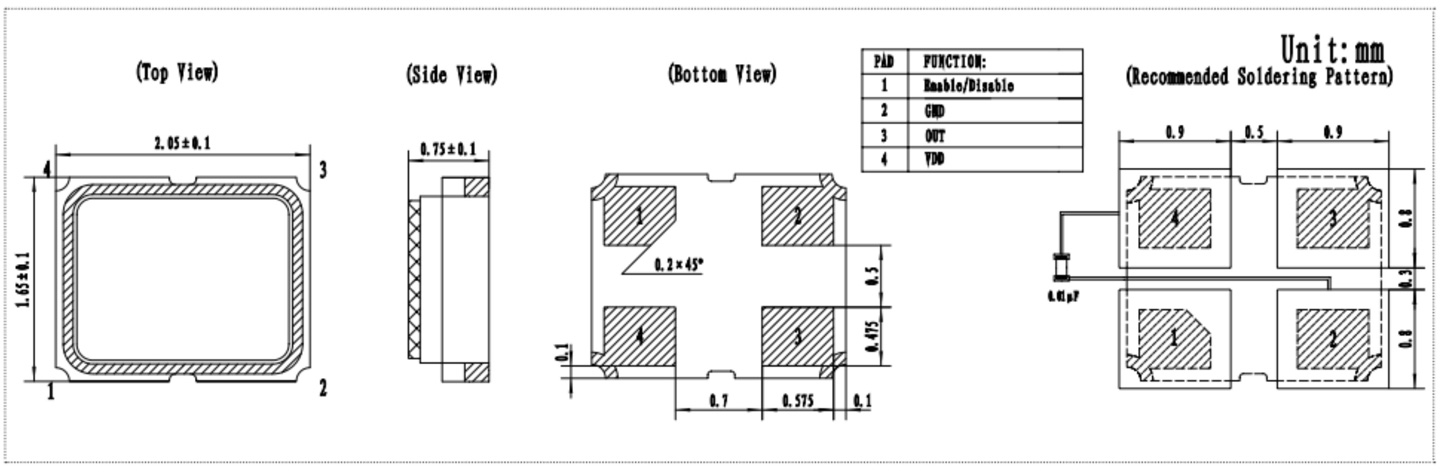

外型尺寸Outline Dimensions (Unit:mm)
