规格书下载 Specification download:

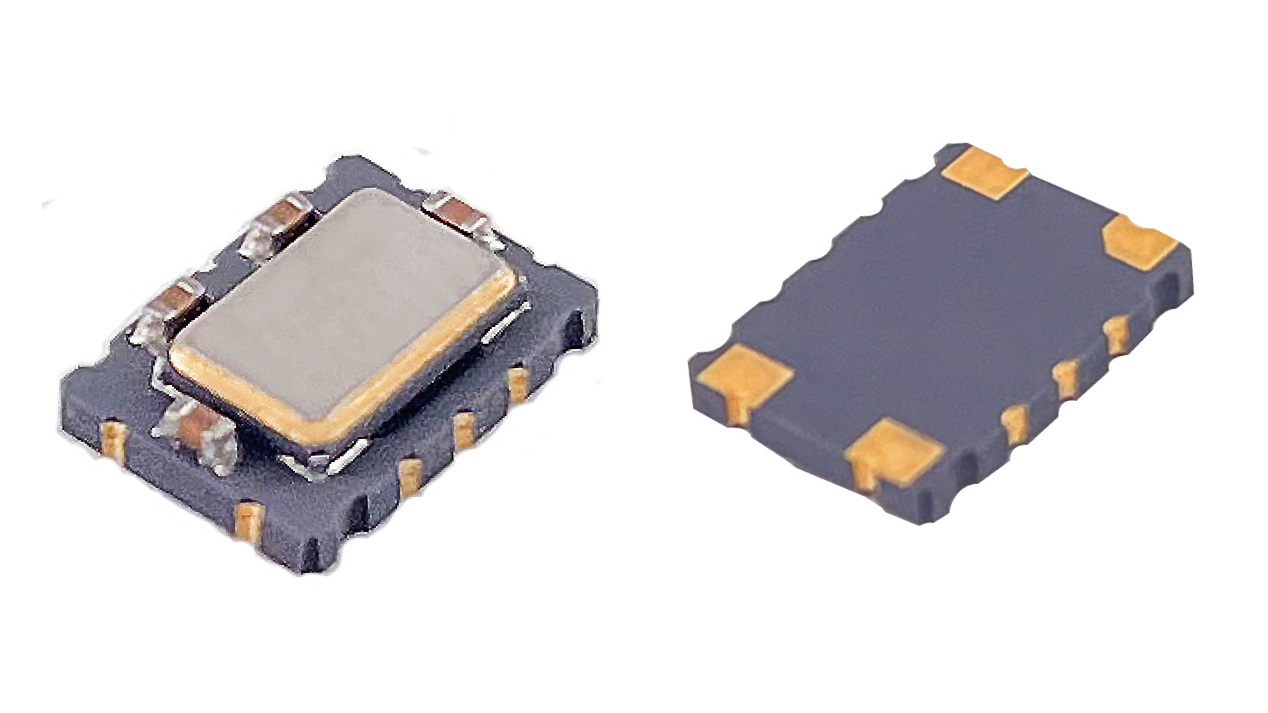

产品类型 PRODUCT TYPE :HTCXO SMD7050
特征:FEATURES
AT切割 AT Cut
削波正弦波输出 Clipped Sine Wave Output
精密公差/稳定性 TightTolerance/stability

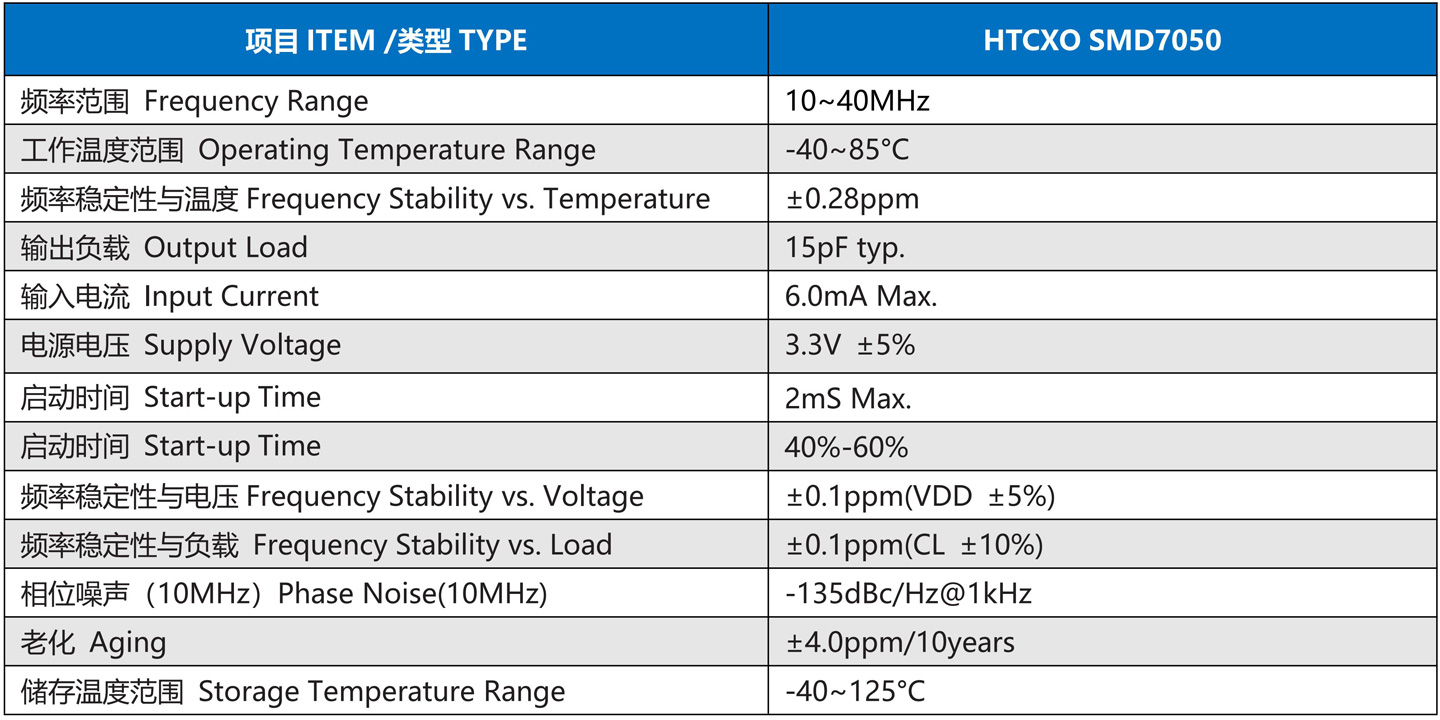

典型规格TYPICAL SPECIFICATIONS

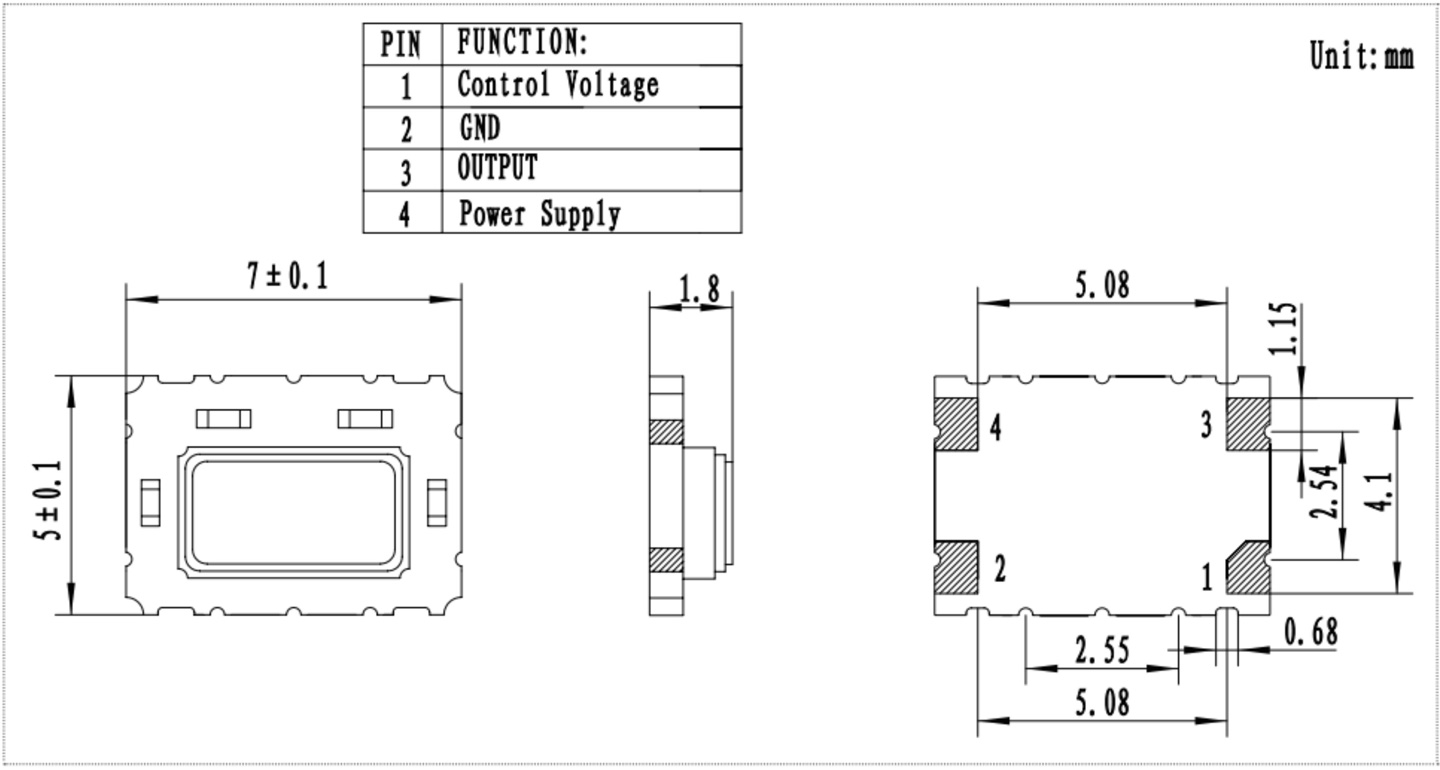

外型尺寸 Outline Dimensions (Unit:mm)
