3225GB

‍‍ ‍规格书下载 Specification download‍：‍

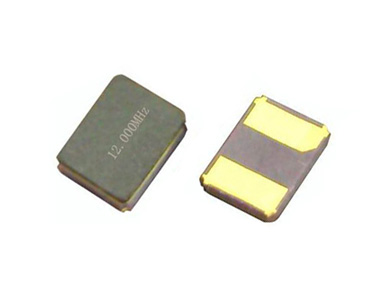

产品类型 PRODUCT TYPE：3225GB

特征 FEATURES

具备最高的品质因子与不同温度变化下的频率高稳定度;

小型化、薄式（3.2*2.5*0.75mm typ）;

频率范围（9M-54M）;

采用玻璃封装，具有恶劣环境下的高稳定性能;

无铅化符合AEC-Q200标准。

It has the highest quality factor and high frequency stability under different temperature changes;

Miniaturized and thin type (3.2 * 2.5 * 0.75mm typ);

Frequency range (9M-54M);

It is sealed with glass and has high stability in harsh environment;

Lead-free conforms to AEC-Q200 standard.

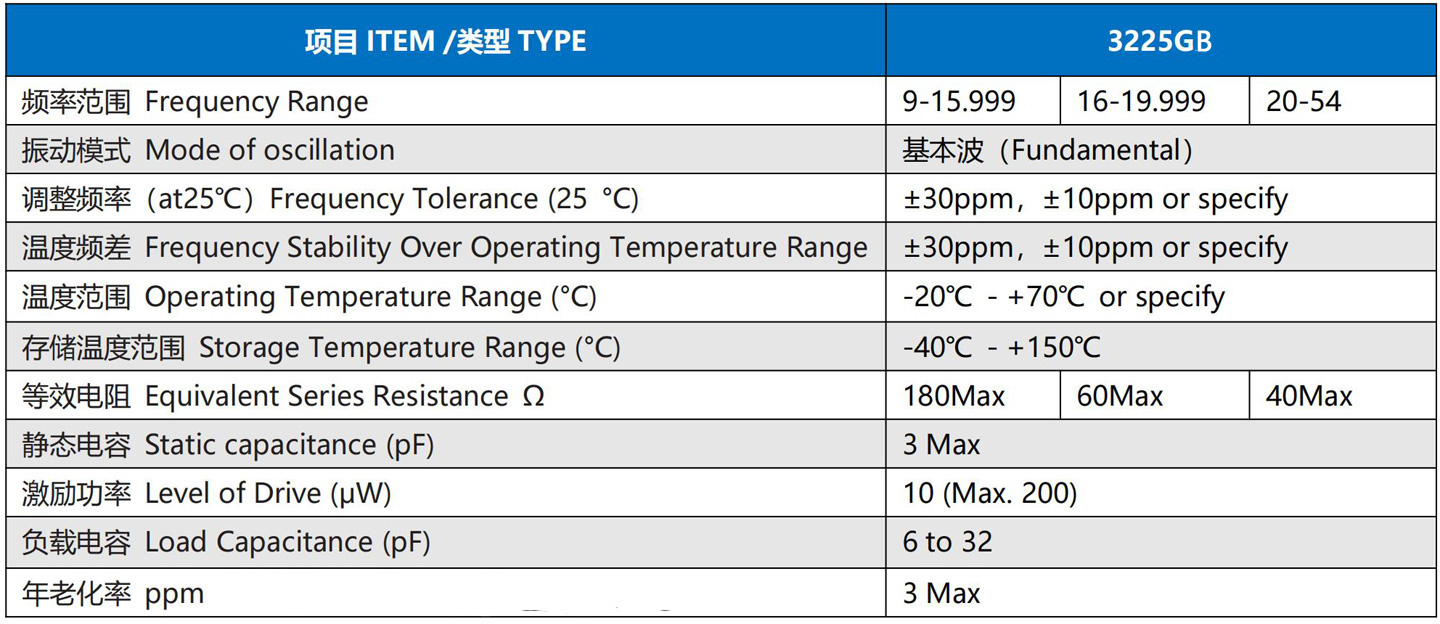

典型规格TYPICAL SPECIFICATIONS

外型尺寸 Outline Dimensions (Unit:mm)
